高頻混壓板可以是FR4和高頻板材的混合，或者不同DK的高頻板材的混合，這種電路板具有耐高溫性能和優異耐輻射性，這種結構的高頻電路板能夠滿足局部高頻信號傳輸?shù)囊?，領智電路是一家專業提供TU872 PCB打樣，TU872 PCB加工，TU872 PCB批量制作等一站式印刷電路板的生產廠家。TU-872 LK is based on a high performance modified epoxy FR-4 resin. This material is reinforced with regular woven E-glass and designed with low dielectric constant and low dissipation factor for high speed low loss and high frequency multilayer circuit board application. TU-872 LK material is suitable for environmental protection lead free process and also compatible with FR-4 processes. TU-872 LK laminates also exhibit excellent CTE, superior chemical resistance, thermal stability, CAF resistance, and toughness enhanced by an allyl network forming compound.
1. Applications
-
Backpanel, High performance computing
-
Line cards, Storage
-
Servers, Telecom, Base station
-
Office Routers
2. Performance and Processing Advantages
-
Excellent electrical properties
-
Dielectric constant less than 4.0
-
Dissipation factor less than 0.010
-
Stable and flat Dk/Df performance
-
Compatible with most FR-4 processes
-
Lead free process compatible
-
Improved z-axis thermal expansion
-
Anti-CAF capability
-
Superior dimensional stability, thickness uniformity and flatness
-
Excellent through-hole and soldering reliability
3. Industry Approvals
-
IPC-4101E Type Designation : /29, /99, /101, /126
-
IPC-4101E/126 Validation Services QPL Certified
-
UL Designation - ANSI Grade: FR-4.0
-
UL File Number: E189572
-
Flammability Rating: 94V-0
-
Maximum Operating Temperature: 130°C

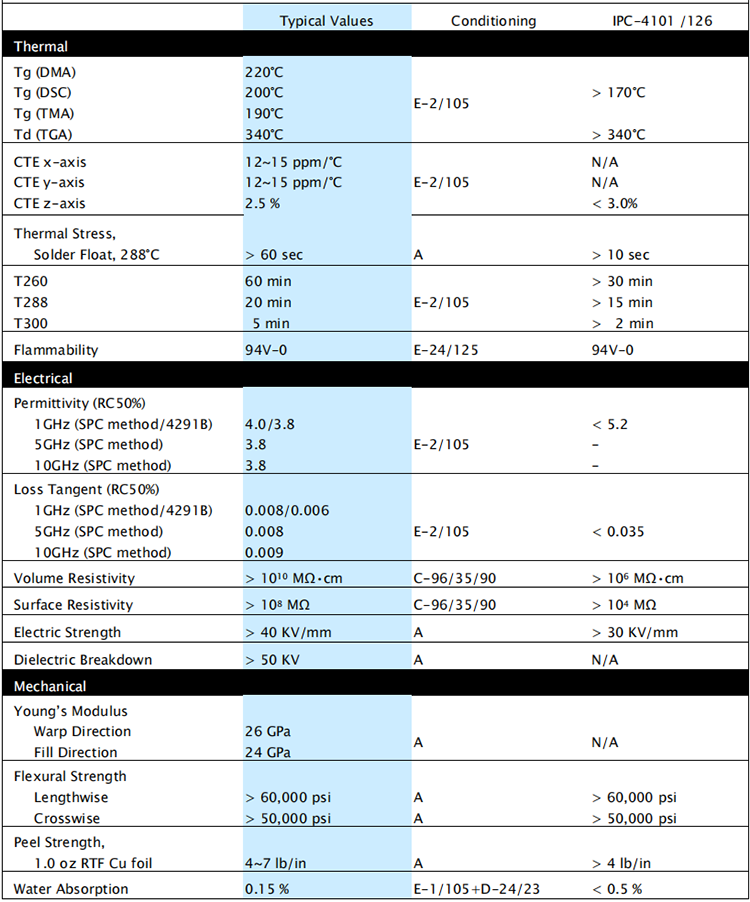

4. Standard Availability
-
Thickness: 0.002” [0.05mm] to 0.062” [1.58mm], available in sheet or panel form
-
Copper Foil Cladding: 1/3 to 5 oz for built-up & double sides
-
Prepregs: Available in roll or panel form
-
Glass Styles: 106, 1080, 3313, 2116 and other prepreg grades are available upon request
